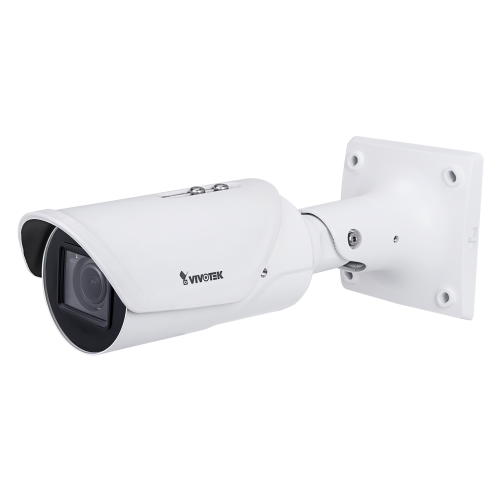

VIVOTEK IB9387-LPR-V2 (N)
Embedded LPR Software, Wiegand Protocol Supported, IP67, IK10
Key Features
- Embedded access control application based on LPR with Vehicle Type, Color, and Direction Recognition
- Supports License Plates from over 100+ Countries
- Black and White Lists for License Plate Verification
- Fully Integrated with VAST2 & VSS VMS
- Various Open APIs Available for 3rd Party Integration
- Trend Micro IoT Security
- Supports Wiegand Protocol for Access Control Applications
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
Overview
VIVOTEK's IB9387-LPR-V2 camera is a standalone LPR (License Plate Recognition) camera system equipped with built-in license plate recognition software and featuring license plate validation capabilities for advanced white-list and black-list applications. It can simultaneously read multiple countries or states, such as Singapore, Malaysia, Texas, Oklahoma, and neighboring states. It also has built-in infrared illuminators for night-time operations, ensuring excellent recognition performance even in low-light conditions.
This camera supports the conversion of license plates into Wiegand signals for use with access control systems and offers various APIs for integration with third-party systems like parking management, toll collection, and weighbridge systems. The Camera provides not only license plate reading with white and black-list system for vehicle verification but also vehicle type and color recognition, enabling parking systems to identify vehicle attributes quickly. This system is highly suitable for parking lot access control, pay-per-use systems, or any LPR applications where vehicles come to a stop or near stop.
Trend Micro IoT Security for Cybersecurity
Product Details
System Information
Model
IB9387-LPR-V2
CPU
Multimedia SoC (System-on-Chip)
Flash
1 GB
RAM
2 GB
Camera Features
Image Sensor
1/2.8” Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 3.2~10.5 mm
Aperture
F1.6 ~ F3.3
Iris Type
P-iris
Field of View
97.3° ~ 27.9° (Horizontal)
70.3° ~ 20.9° (Vertical)
131.5° ~ 34.9° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
IR LED*6
Minimum Illumination
0.06 lux @ F1.6 (Color)
<0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Tilt Range
90°
Rotation Range
180°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Built-in 32GB MicroSD card for LPR images
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Built-in Installation Aids
Remote focus, remote zoom
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2560x1920 (WDR on)
30 fps @ 2560x1440 (WDR on)
Maximum Streams
3 simultaneous streams
S/N Ratio
60 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream II
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure, Smart IR II; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (LPC-parking lots); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings
Audio
Audio Capability
Two-way audio
Audio Compression
G.711, G.726
Audio Interface
External Microphone input
External line output
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported
Solution Integration
Embedded Software
VIVOTEK ANPR
VADP Package
Trend Micro IoT Security
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Camera:
Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
ANPR Software:
Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, wiegand protocol supported
VaxALPR Software:
FTP, JSON, XML, TCP Server, TCP client, wiegand protocol supported
General
Connectors
RJ-45 cable connector for Network/PoE connection
Audio line in
Audio line out
AC 24V
DC 12V
Digital input *2
Digital output *2 (Dry contact,Load voltage 30V AC/DC@1A max)
LED Indicator
System power and status indicator
Power Input
AC 24V, DC 12V, IEEE 802.3at PoE Class 4
Power Consumption
PoE: Max. 26W
DC 12V: Max. 29.5W
AC 24V: Max. 28W
Dimensions
118 x 118 x 294 mm
Weight
1.3 kg
Casing
IP66, IP67, IK10 (Metal Housing)
Certifications
EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), RCM (AS/NZS CISPR 32 Class A), FCC (FCC Part 15 Subpart B Class A), ICES (ICES-003 Issue 7), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1 Ed.3), CB (IEC/EN 62368-1, EN 62471); Environment: IK10 (IEC 62262), IP66/67 (IEC 60529); IA: BIS (IS 13252, IEC 60950-1), BSMI (EMC: CNS15936)
Operating Temperature
Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield
