VIVOTEK SC9133-RTL
AI People Counting Camera for Flexible Mounting Height and Scenarios
Key Features
- AI People Counting Accuracy: up to 99%
- Deep Learning AI Classification Capability
- Fisheye Camera with Extended Field of View Allowing for Better Coverage
- Wide Dynamic Range for Challenging Lighting
- Flexible Mounting Height 1.9 to 10 m
- Stitching Up to 7 CAMs
Overview
VIVOTEK’s SC9133-RTL is a counting camera, equipped with our latest AI Deep Learning people detection and classification technology, accurate up to 99%. AI-based Customer Classification simultaneously counts people and distinguishes object types, ensuring only people are counted, reducing false detection rates.
SC9133-RTL generates information such as people counting, object path tracking that is applied to in-store layout improvement, promotional evaluation, staff planning, and the control of service times, providing business owners key metrics to effectively make operating decisions and increase ROI. Adults or children, single individuals or groups, can be distinguished from non-human objects such as shopping carts and strollers, providing accurate counting analytics even at the busiest and most congested times.
Human object recognition can identify which motion comes from nonhumans to avoid false counting. Beyond that, the AI neural network engine keeps enhancing the counting accuracy rate and updating AI skills such as queue management, zone counting, crowd detection, and more. It turns into a sophisticated and specialized camera that is beneficial for gathering analytics and distinguishing customer characteristics in each retail scenario.

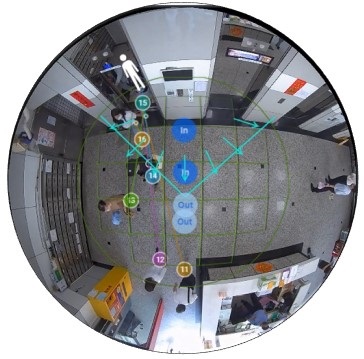

Larger FoV, More Possibility

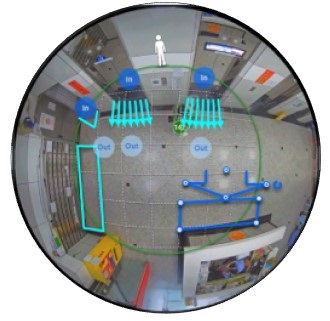

Multiple Applications - Pass-by, Queue

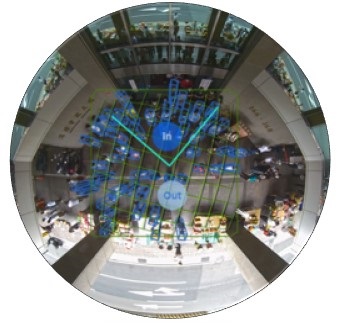

Mounting Height 1.9 ~ 10m
NDAA Compliance
Benefits
Accurate
- Up to 99% accuracy
- Flexible installation
- U-turn option / Bi-directional
- Zone detection for loitering alarm
- Queue analysis
Multitasking
- Fisheye surveillance with sound
- Support multiple rules
- Enable AI classification with firmware upgrade - Gender, Bicycle/Wheelchair/Stroller, Adult/Child, Luggage
Flexible Integration
- Large FOV to extensive counting areas
- WDR for high contrast settings
- Crystal clear in low light conditions
Product Details
System Information
Model
SC9133-RTL
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GB
Camera Features
Image Sensor
1/2.8” Progressive CMOS
Lens Type
Fixed Focal
Focal Length
f = 1.47mm
Aperture
F2.7
Field of View
140° (Horizontal)
140° (Vertical)
140° (Diagonal)
Shutter Time
1/60 sec. to 1/32,000 sec.
WDR Technology
WDR Enhanced
Storage
MicroSD/SDHC/SDXC card slot
Built-in Installation Aids
Micro USB*, Pixel Calculator
*Requires Micro B converter to connect Wi-Fi dongle
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
1792 x 1792 @ 30 fps
896 x 896 @ 30 fps
448 x 448 @ 30 fps
Maximum Streams
3 simultaneous streams
Report Format
JSON/XML/CSV
Audio
Audio Capability
One-way audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Network
Users
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface
10Base-T/100 BaseTX Ethernet
General
Connectors
RJ45 (through a M12 to RJ45 cable)
M12 A-code 12-pin for DC power/ 2x RS485 / 2x DI (max. 60V per port) / 1x DO
Memory card slot x1
LED Indicator
System power and status indicator
Power Input
PoE IEEE 802.3af Class 3
DC 9-48V
Power Consumption
PoE: Max. 12.5W
DC: Max. 13.3W
Dimensions
140 (D) x 76 (W) x 42 (H) mm
Weight
492 g
Casing
Metal, IP66, IK10
Certifications
CE, LVD, FCC Class B, VCCI, C-Tick, UL, BIS, BSMI, UK CE
Operating Temperature
PoE/DC:
Starting temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Working temperature: -30°C ~ 60°C (-22°F ~ 140°F)
White LED
Yes
IR LED
Yes
Storage Temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Installation
Installation Height
1.9 ~ 10 m
Included Accessories
Packing Contents
Quick installation guide, flat mounting bracket with ears, screw pack, M12 to RJ45 cable
Optional Accessories
AM-10G (SC9133-RTL), Recessed Kit for SC9133-RTL
AM-11H, Pendant mount kit
